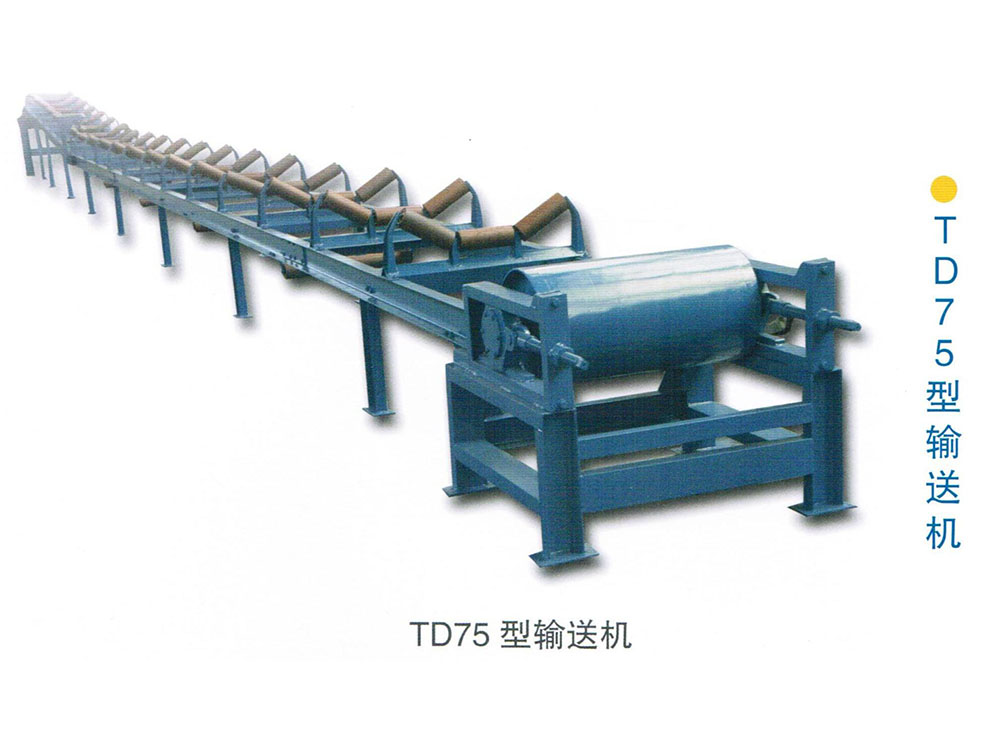

TD75 belt conveyor
Product Introduction
TD75 and DTI belt conveyors are widely used in metallurgy, coal, hydropower, transportation and other sectors to transport loose materials or finished items. According to the requirements of the conveyor line, it can be transported alone, or multiple conveyors can be combined with other conveyors to form a conveying system for horizontal or inclined conveying.
|  |
|
Product Introduction
TD75 and DTI belt conveyors are widely used in metallurgy, coal, hydropower, transportation and other sectors to transport loose materials or finished items. According to the requirements of the conveyor line, it can be transported alone, or multiple conveyors can be combined with other conveyors to form a conveying system for horizontal or inclined conveying.
- 1
- 2
- 3
- 4
Technical Parameter
|
胶带宽度（mm） |
承载托辊形式 |
槽型托辊 |
|||||
|
带速（m/s） |
0.6 |
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
|
|
500 |
输送量（t/h） |
20 |
30 |
40 |
50 |
60 |
75 |
|
650 |
40 |
55 |
70 |
85 |
110 |
140 |
|
|
800 |
65 |
85 |
110 |
140 |
180 |
220 |
|
|
1000 |
90 |
140 |
180 |
210 |
280 |
360 |
|
|
1200 |
150 |
200 |
260 |
340 |
440 |
550 |
|
|
1400 |
240 |
320 |
380 |
500 |
600 |
750 |
|
|
1600 |
300 |
380 |
480 |
600 |
720 |
900 |
|
|
1800 |
360 |
460 |
560 |
700 |
900 |
1100 |
|
|
2000 |
450 |
600 |
720 |
900 |
1100 |
1300 |
|
|
2200 |
550 |
720 |
900 |
1100 |
1300 |
1500 |
|
|
2400 |
600 |
800 |
1000 |
1200 |
1500 |
1800 |
|
